External Logic Integration (ELI)

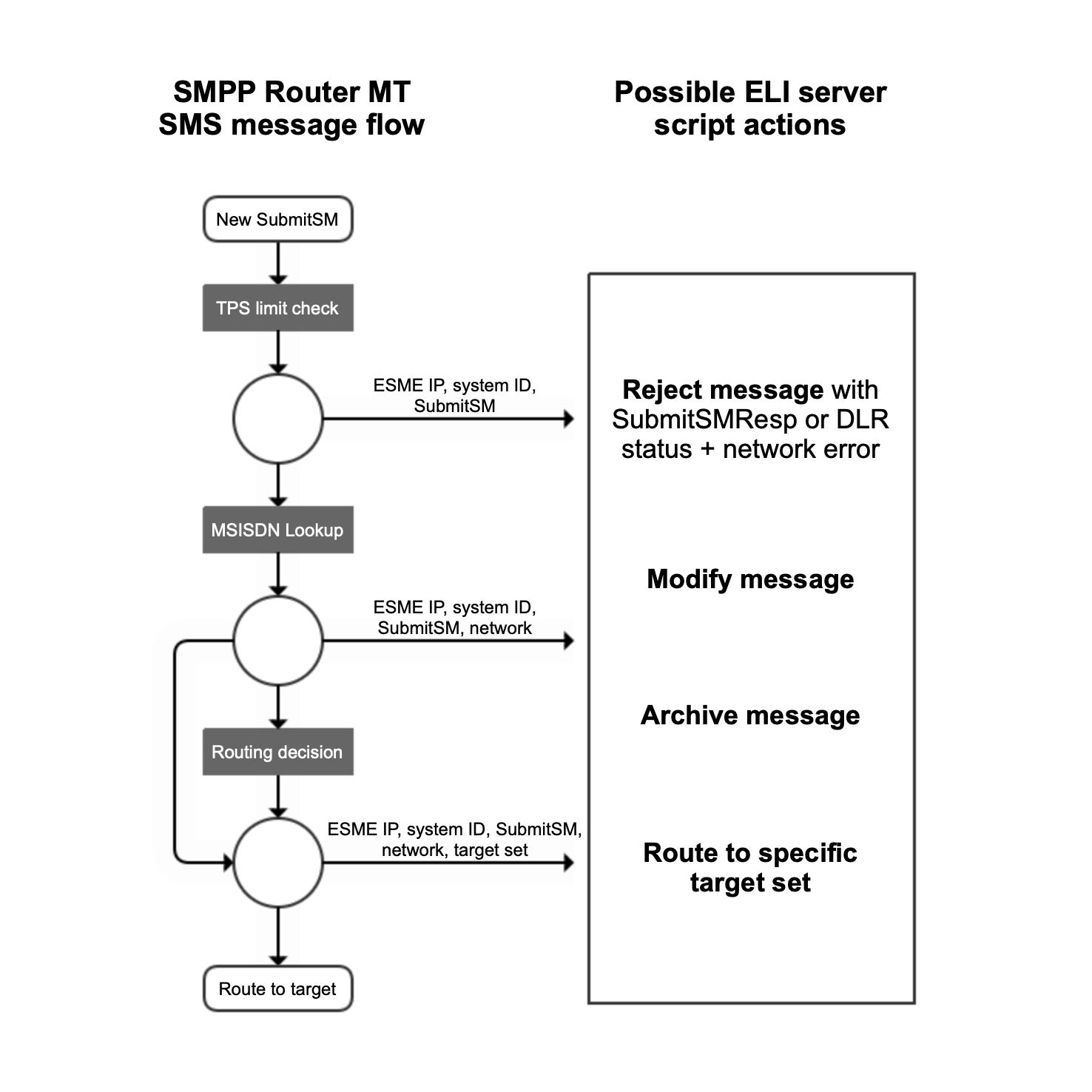

External Logic Integration (ELI) is a feature of SMPP Router that enables programmatic control over SMS message flow through real-time HTTP callbacks. When a message is submitted via SubmitSM, the router can invoke a customer-defined HTTP endpoint to make dynamic decisions about how the message should be handled.

This mechanism allows external systems to inspect message metadata—such as sender, recipient, content, IP address, and system ID—and respond with instructions that influence routing, rejection, delivery behaviour, and tagging.

Typical use cases:

  • Enforcing custom routing policies

  • Blocking messages based on source/destination patterns

  • Integrating fraud detection or compliance logic

  • Simulating delivery failures for testing or billing logic

By using ELI, businesses gain fine-grained control over message processing without modifying the SMPP Router’s internal logic.


ELI Requests

Request Types

Type

SMPP PDU

Direction

0

SubmitSM

ESME-to-Target

1

DataSM

ESME-to-Target

2

DeliverSM

Target-to-ESME

3

DataSM

Target-to-ESME

Request Formats

Example ELI request type 0 (SubmitSM ESME-to-target)

JSON
{
  "ipaddr": "127.0.0.1",
  "submitsm": {
    "data_coding": 0,
    "dest_addr_npi": 1,
    "dest_addr_ton": 1,
    "destination_addr": "337700222333",
    "esm_class": 0,
    "priority_flag": 0,
    "protocol_id": 0,
    "registered_delivery": 1,
    "replace_if_present_flag": 0,
    "schedule_delivery_time": 0,
    "service_type": "",
    "short_message": [
      72,
      101,
      108,
      108,
      111,
      32,
      119,
      111,
      114,
      108,
      100,
      33
    ],
    "sm_default_msg_id": 0,
    "source_addr": "447700111222",
    "source_addr_npi": 0,
    "source_addr_ton": 0,
    "tlvs": [
      {
        "length": 1,
        "tag": 264,
        "value": "\u0003"
      }
    ],
    "validity_period": "2025-07-24T18:06:06.318Z"
  },
  "systemid": "esme001",
  "type": 0
}

The JSON of a “type 0” ELI request comprises the following fields:

  • type : 0

  • systemid : SMPP system ID of ESME

  • ipaddr : IP addess of ESME

  • submitsm : fields of the SubmitSM PDU

ELI Responses

When SMPP Router sends a request to an ELI webhook, the response can optionally be used to perform some operation in relation the the request. An empty response indications no action, resulting in SMPP Router processing the relevant SMPP PDU as if the ELI had not been called.

Where a response is provided by the ELI webhook, it will be one of the following actions:

Action

Meaning

reject

Reject message using SubmirSMResp

reject_dlr

Reject message using a DLR

modify

Modify the message

Action: "action" in ELI JSON Response

The action field within the JSON response from an External Logic Integration (ELI) request dictates how the SMPP Router should handle a SubmitSM message. This field is evaluated following the invocation of the ELI HTTP endpoint, and supports conditional routing, rejection, or modification of messages.

"reject" action

Indicates that the message should be outright rejected. The SMPP Router will respond to the ESME with a SubmitSMResp indicating failure. By default, the response will carry ESME_RSUBMITFAIL, unless overridden by an optional cmdstatus field in the JSON.

Example:

JSON
{
  "action": "reject",
  "cmdstatus": 0x0000000B
}

In this case, the message is rejected and the response includes ESME_INVDSTADR (0x0000000B).

"reject_dlr" action

This instructs SMPP Router to accept the message from the ESME, but simulate rejection by generating a Delivery Receipt (DLR) with a status such as UNDELIV, EXPIRED, etc. This is typically used when the router needs to fabricate a delivery failure without rejecting the original submission.

Optional fields:

  • status: DLR status code (e.g. 5 for UNDELIV)

  • networkerror: Optional 8-bit error code to include in DLR

Example:

JSON
{
  "action": "reject_dlr",
  "status": 5,
  "networkerror": 1
}

“modify” action

This instructs SMPP Router to modify one or more message fields.

Example - Change source address, source TON and source NPI:

JSON
{
  "action": "modify",
  "parameters": [
    {
      "parameter": "sm.source_addr",
      "value": "441234567890"
    },
    {
      "parameter": "sm.source_addr_ton",
      "value": 1
    },
    {
      "parameter": "sm.source_addr_npi",
      "value": 1
    }
  ]
}

Example - Change source address and remove a specific TLV:

JSON
{
  "action": "modify",
  "parameters": [
    {
      "parameter": "sm.source_addr",
      "value": "67890"
    },
    {
      "parameter": "tlv_",
      "op": "remove",
      "value": 1234
    }
  ]
}

Example - Change source address and add TLV with numeric value:

JSON
{
  "action": "modify",
  "parameters": [
    {
      "parameter": "sm.source_addr",
      "value": "555123"
    },
    {
      "parameter": "tlv_",
      "op": "add",
      "value": {
        "tag": 5678,
        "value": 65535
      }
    }
  ]
}

Example - Change source address and add TLV with byte array:

JSON
{
  "action": "modify",
  "parameters": [
    {
      "parameter": "sm.source_addr",
      "value": "777888"
    },
    {
      "parameter": "tlv_",
      "op": "add",
      "value": {
        "tag": 9012,
        "value": [0x48, 0x65, 0x6C, 0x6C, 0x6F]
      }
    }
  ]
}

Parameters that can be modified through the ELI "modify" action:

String Parameters (value type: string)

Parameter

Description

Example Value

sm.destination_addr

Destination phone number/address

"441234567890"

sm.source_addr

Source phone number/address

"12345"

sm.short_message

SMS message content

"Hello World"

sm.service_type

Service type identifier

"SMS"

Numeric Parameters (value type: number)

Parameter

Description

Example Value

Range

sm.source_addr_ton

Source address type of number

1

0-255

sm.source_addr_npi

Source address numbering plan

1

0-255

sm.dest_addr_ton

Destination address type of number

1

0-255

sm.dest_addr_npi

Destination address numbering plan

1

0-255

sm.sm_default_msg_id

Default message ID

0

0-255

sm.protocol_id

Protocol identifier

0

0-255

sm.data_coding

Data coding scheme

0

0-255

sm.esm_class

ESM class flags

0

0-255

sm.registered_delivery

Delivery receipt flags

1

0-255

sm.priority_flag

Message priority

0

0-255

sm.replace_if_present_flag

Replace if present flag

0

0-255

TLV Parameters

Parameter

Operation

Value Type

Description

tlv_

"remove_all"

N/A

Remove all TLVs

tlv_

"remove"

number

Remove TLV by tag (e.g. 1234)

tlv_

"add"

object

Add/replace TLV

TLV Add Object Structure:

JSON
{
  "tag": number,     // TLV tag (e.g., 1234)
  "value": string|number|array   // TLV value
}

TLV Value Types:

  • String: "CustomValue" (converted to bytes)

  • Number: 65535 (converted to big-endian bytes)

  • Array: [72, 101, 108, 108, 111] (raw byte values)

Example Usage:

Modify String Parameters:

JSON
{
  "parameter": "sm.destination_addr",
  "value": "441234567890"
}

Modify Numeric Parameters:

JSON
{
  "parameter": "sm.data_coding",
  "value": 8
}

Modify TLV:

JSON
{
  "parameter": "tlv_",
  "op": "add",
  "value": {
    "tag": 1234,
    "value": "Hello"
  }
}


Future and Custom Actions

The system can be extended to support additional actions such as:

  • "route_override": Override target routing

  • "annotate": Tag the message for logging/billing

  • "delay": Introduce artificial delay before submission

These are not yet standardised, but may be supported in future releases or custom deployments.


Summary

Action

Behaviour

reject

Rejects the message with an SMPP error code

reject_dlr

Accepts the message but issues a DLR indicating delivery failure

modify

Modifies the message

All ELI responses must be valid JSON, and if an action is not specified or unrecognised, SMPP Router will proceed with normal processing.
