Tutorial: Managing targets

Managing Targets and Target Sets in SMPP Router Using smpproutercli

This tutorial will guide you through the process of configuring targets and target sets in SMPP Router using the command-line interface tool smpproutercli. A target represents a connection from SMPP Router to a mobile network operator, SMS gateway, hub or provider.

In addition to using smpproutercli, configuration can also be performed by editing the smpprouter.conf file directly or via HTTP API calls to SMPP Router’s management endpoint.

Prerequisites

Ensure smpproutercli is installed and accessible in your environment. You can verify this by running:

smpproutercli --help

Step 1: Adding a New Target Set

We begin by creating a target set into which we will later add targets.

Command:

smpproutercli add-targetset id=ts001 name=TS001 submits_enabled=true

• id=ts001: The identifier for the target set. This will be used to identify the target set.

• name=TS001: The name for the target set. This is a friendly name for the target set.

• submits_enabled=true: Controls submits to this target set. Setting to true indicates that messages can be submitted to this target set.

Step 2: Viewing Target Sets

To list all currently configured target sets:

smpproutercli list-targetsets

If run at this point in the tutorial, the following output will be seen:

This shows a single target set “ts001”.

Step 3: Add a Target to a Target Set

We now need to add a target to the target set. Multiple targets can be added to a target, but we will only add one for this tutorial.

Command:

smpproutercli add-target ts001 name=smsc1 host=smscsim.melroselabs.com port=2775 bindqty=5 systemid=630530 password=16bf2a

• name: The name of the target. This will be used to identify the target.

• host: The hostname or IP address of the target.

• port: The port number for the target.

• bindqty: The number of TRX, TX+RX or RX binds to the target.

• systemid: The system ID for the account connecting to the target.

• password: The password for the account connecting to the target.

Step 4: View Targets in a Target Set

To list all currently configured targets in a target set:

smpproutercli list-targets ts001

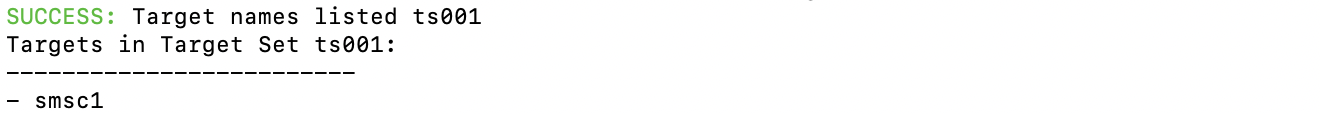

If run at this point in the tutorial, the following output will be seen:

This shows a single target “smsc1” in target set “ts001”.

Step 4: View Status of Targets

To show the current status of SMPP Router and its connections to targets:

smpproutercli status

If run at this point in the tutorial, the following output will be seen:

This shows 5 x TRX binds in the SMPP bound state to target “smsc1” which is part of target set “ts001”.

Step 5: Modify the Target

Change bind quantity to target

We are going to reduce the number of binds from 5 to 4:

smpproutercli mod-target ts001 smsc1 bindqty=4

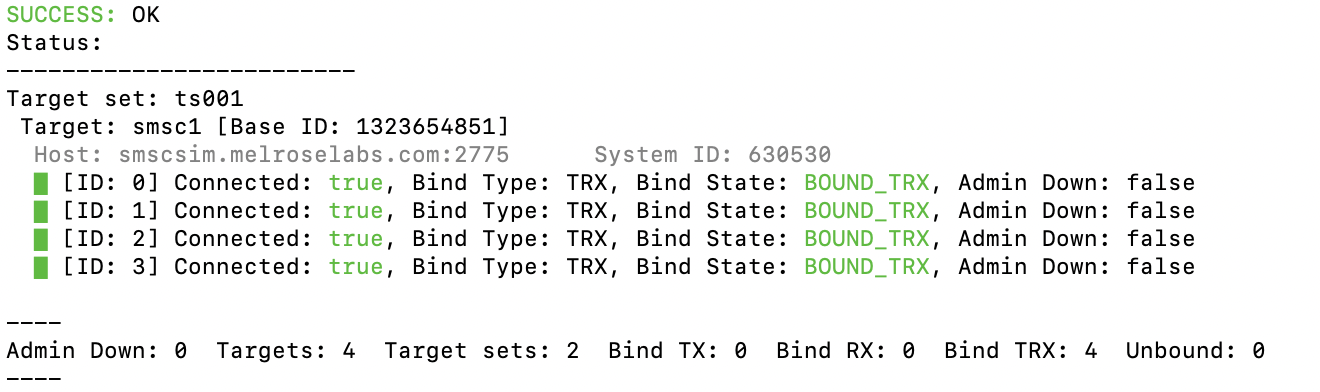

Running smpproutercli status command again will now show:

This shows 4 x TRX binds - reduced from 5 x TRX binds.

Bring the connection to the target “administratively down”

The following command will bring down the connection to the target:

smpproutercli mod-target ts001 smsc1 admindown=true

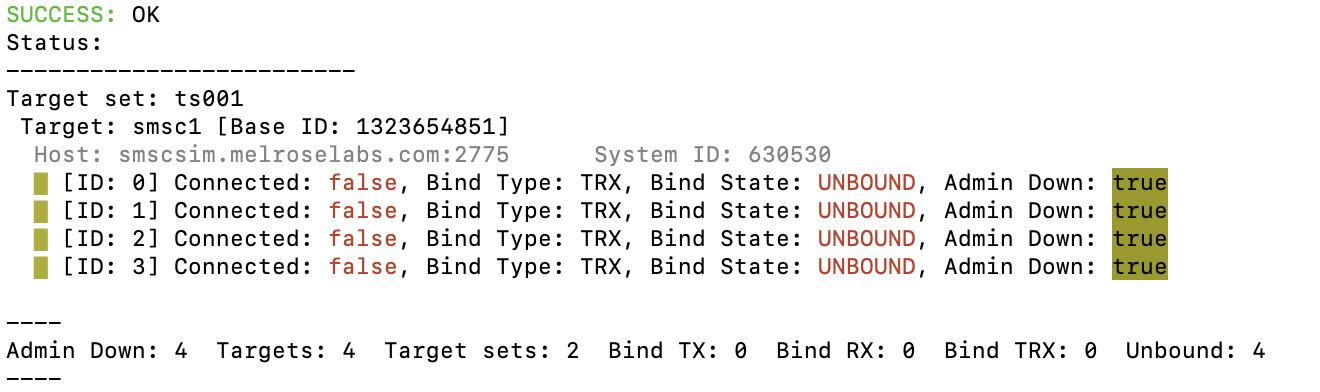

Running the “status” command again will now show:

Messages will not be attempted via target connection that is down.

Step 6: View a Target

To view the configuration for target “smsc1”, we use the following command:

smpproutercli get-target ts001 smsc1

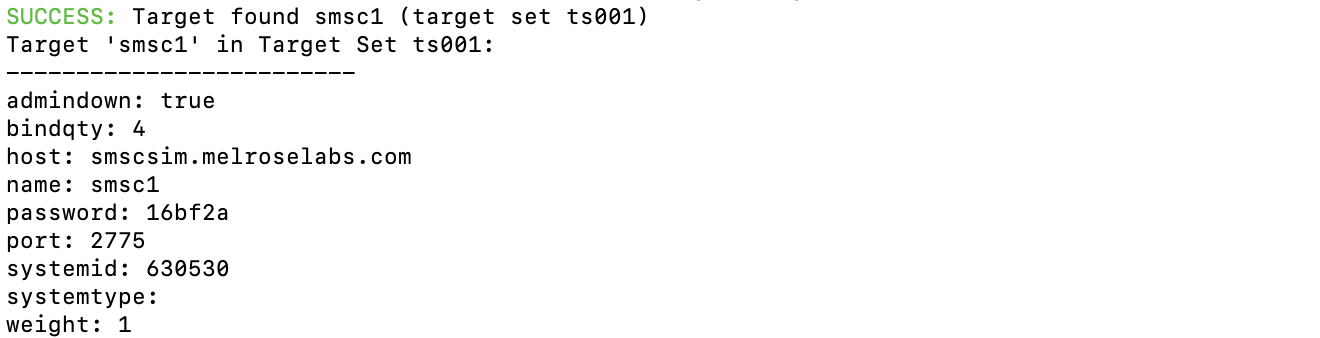

This will show the following:

Step 7: Delete a target

When we no longer require the target, we use the following command to delete the target from the target set and SMPP Router:

smpproutercli del-target ts001 smsc1

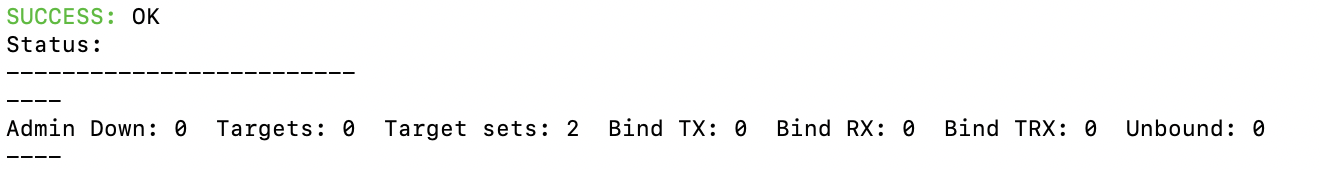

After this command has been run, running smpproutercli status will show no targets:

Conclusion

Using smpproutercli, administrators can easily manage target sets and targets in SMPP Router - from creation and modification to deletion. This command-line tool supports rapid creation of connections to mobile network operators, SMS gateways, hubs and providers.

For advanced configuration or automation, consider using the HTTP API or editing the configuration file directly.
